An Optimum Solution Provider
in Civil Construction & Environmental Protection

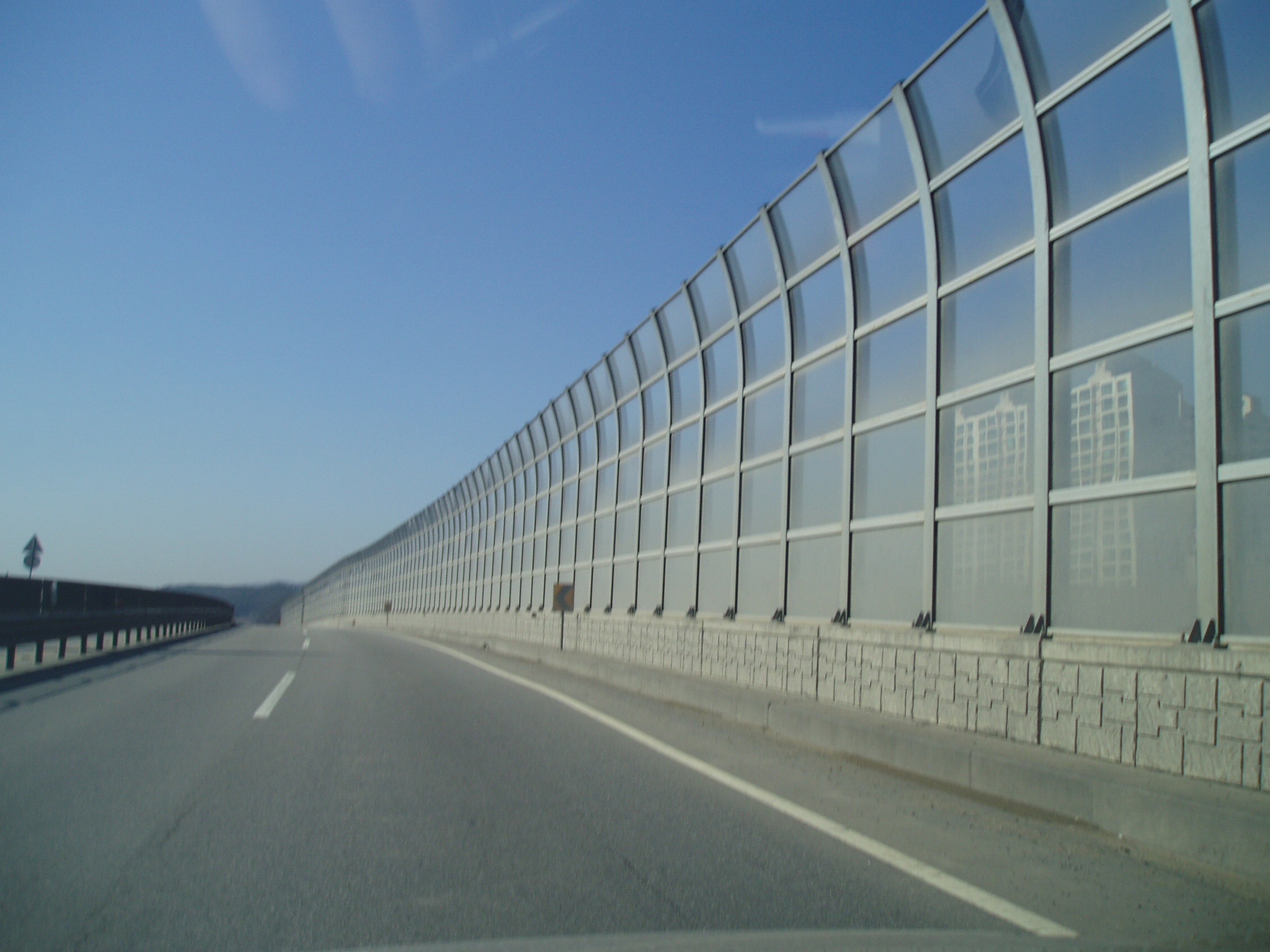

GENERAL TRANSPARENCY SOUNDPROOF PANELS(PMMA, PC)
It is a general transparent soundproofing board which has good sound insulation and permeation loss and excellent impact resistance by applying PMMA(Poly Methl Methacrylate) and PC(PolyCarbonate)
• Ideal for places where a clear clock is required because of its good translucency
• Easy to secure sunshine zone and mining and excellent anti-icing effect
• Excellence in sound insulation performance and various colors to satisfy appearance
• Effect of aesthetic improvement by protecting the view
The application of PMMA (Poly Methl Methacrylate) and PC (PolyCarbonate) is effective in preventing the damage caused by debris by the protective film at the time of breakage, and it has the effect of improving the beauty by protecting the view.
• Transparent plate can be replaced without disassembly of the soundproof wall in case of vehicle collision or artificial damage (easy maintenance))
• Easy to secure sunshine zone and mining and excellent anti-icing effect
• Excellence in sound insulation performance and various colors to satisfy appearance
• Effect of aesthetic improvement by protecting the view
□ Standard
Width : 1970/2970/3970mm
Height : 500/1000mm
Plate thickness : 6/8/10mm
Frame Thickness : 60/80/95mm
□ Material
Front plate : PMMA / PC
Frame : Aluminum
